ITSY EVO 2026
build and setup guide
ITSY 2026
frame assembly video
Lets build the frame together.
Items you will need:
T5 torx driver
1.5mm hex driver
4mm nutdriver
Flush cutters
6" of kite string or dental floww
Flight controller setup

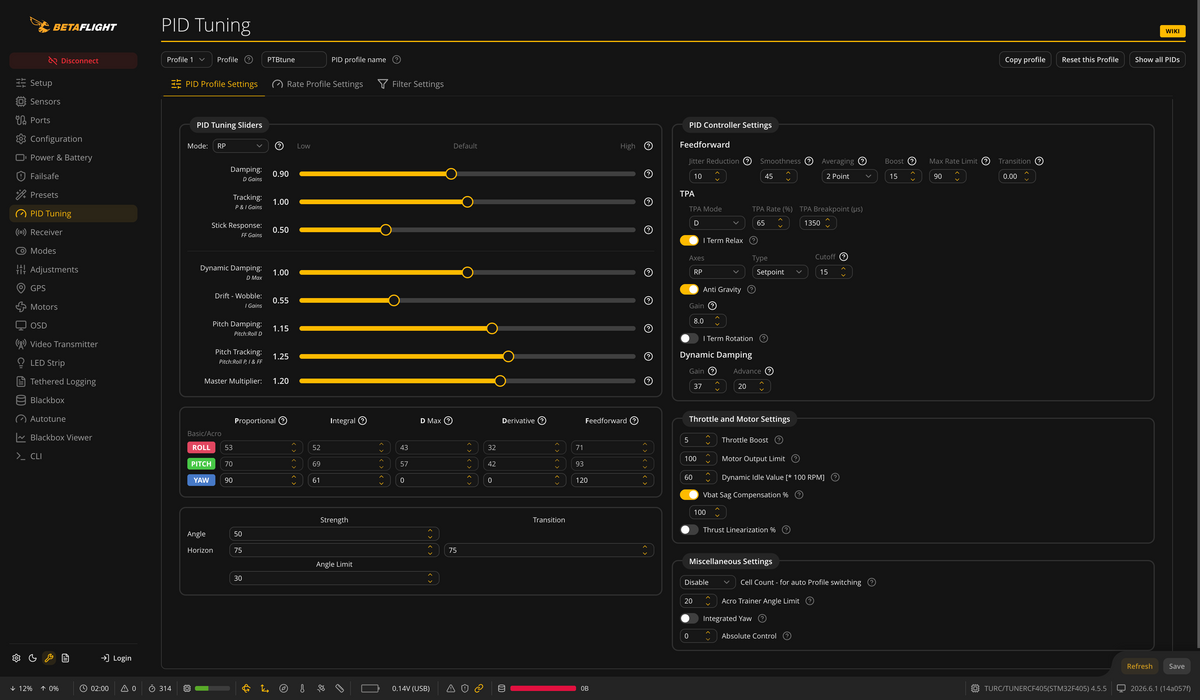

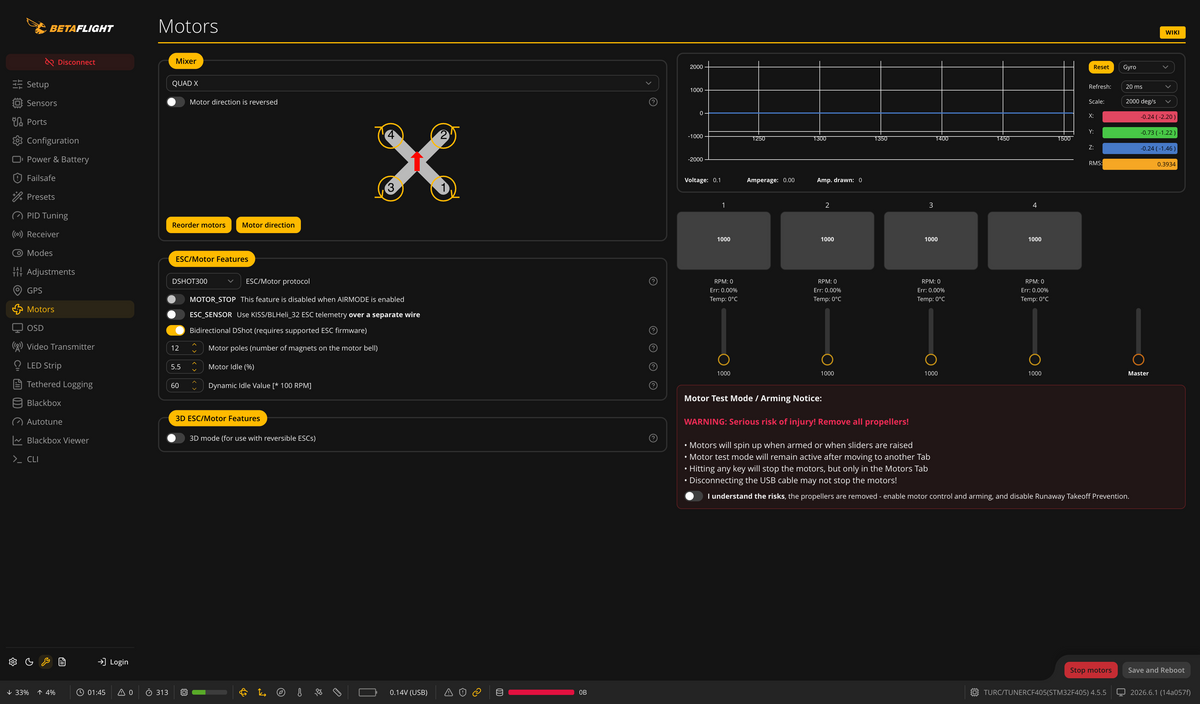

Use the reference images below to configure your ITSY's flight controller in BETAFLIGHT for best flight performance.
Use +, −, 1:1, or press Escape to close
Use +, −, 1:1, or press Escape to close
Use +, −, 1:1, or press Escape to close
ITSY 2026
Prop balancing Guide
If using our 1103/9000kv motors we recommend balancing your prop for the smoothest flight performance. These motors are one of the most powerful in their class, and although they are balanced and checked by us before shipping, pros spinning at this high RPM can cause un-necessary vibration.
pre flight checklist

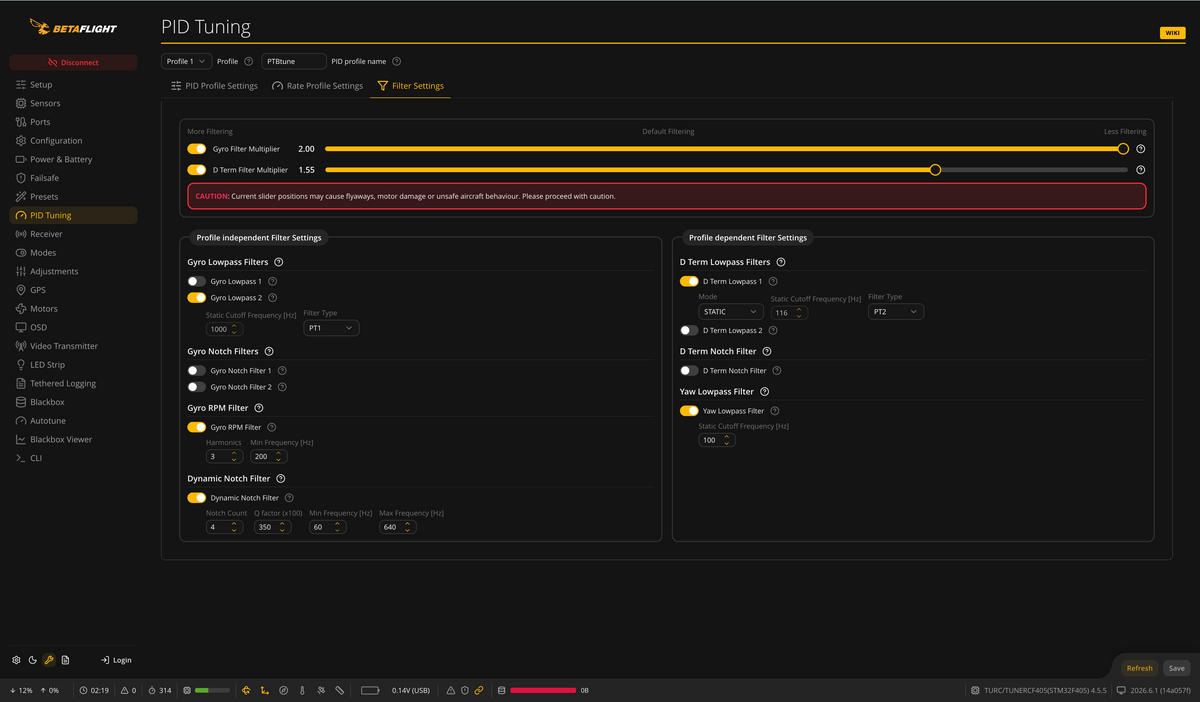

Confirm the PID setting. Very important: confirm PID filter tab settings.
confirm props inward direction in betaflight and use Betaflight to confirm proper motor direction.
Clean motor shafts with isopropyl alcohol to remove any manufacturing oil and ensure that props do not loosen or slip.
If using the SPYDR 1103/9000kv motors , balance your props per the above YouTube video. This will ensure the best high power flight performance of your ITSY.

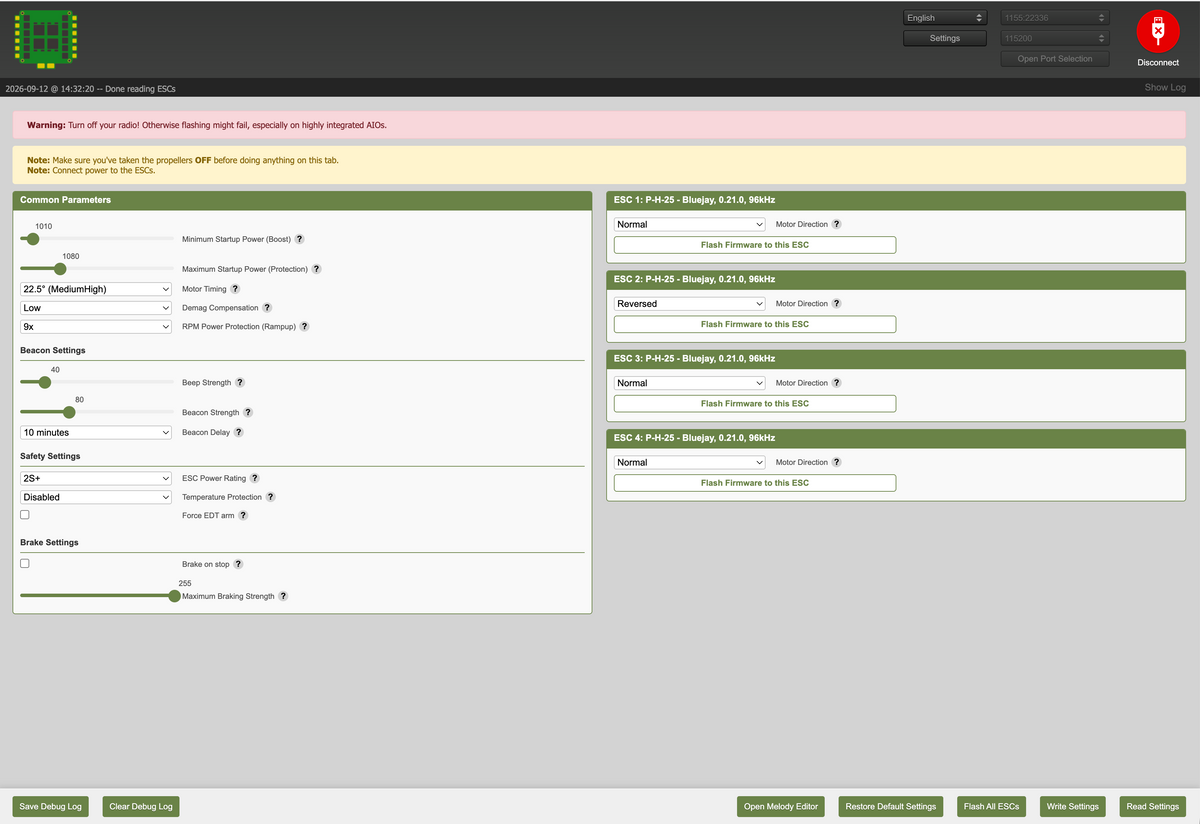

For SPYDR 1103 motors be sure to set PMW ESC rate to 96KHZ.

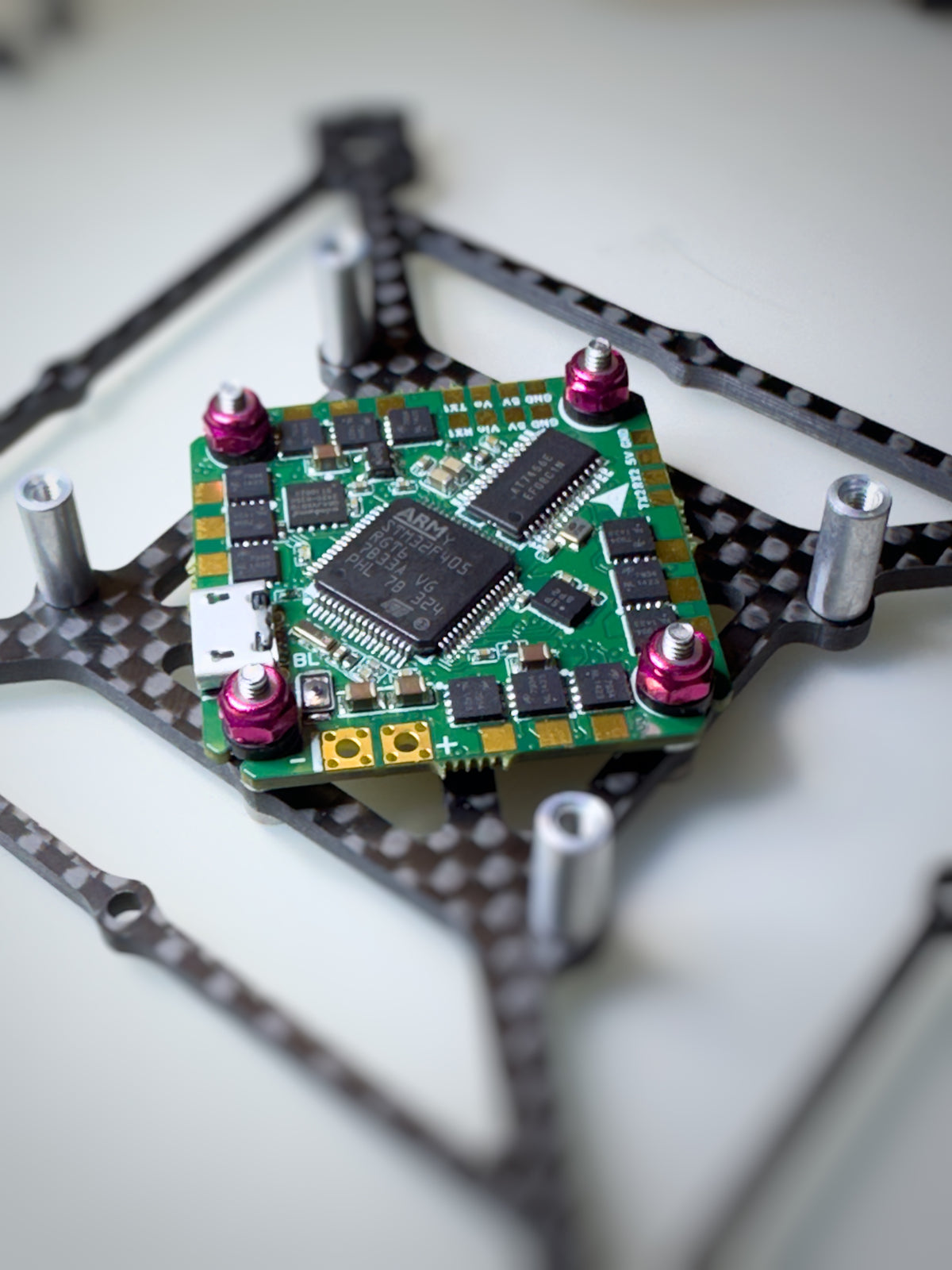

The recommended FC: the TuneRC polyF 405 V1.3 has been equipped with extra filtering on the gyro BEC. Use the included capacitor.
For any other FC please use a 1,000uf capacitor included or available from spydr.us.
