SORA 2026
build and setup guide
SORA 2026
frame assembly video

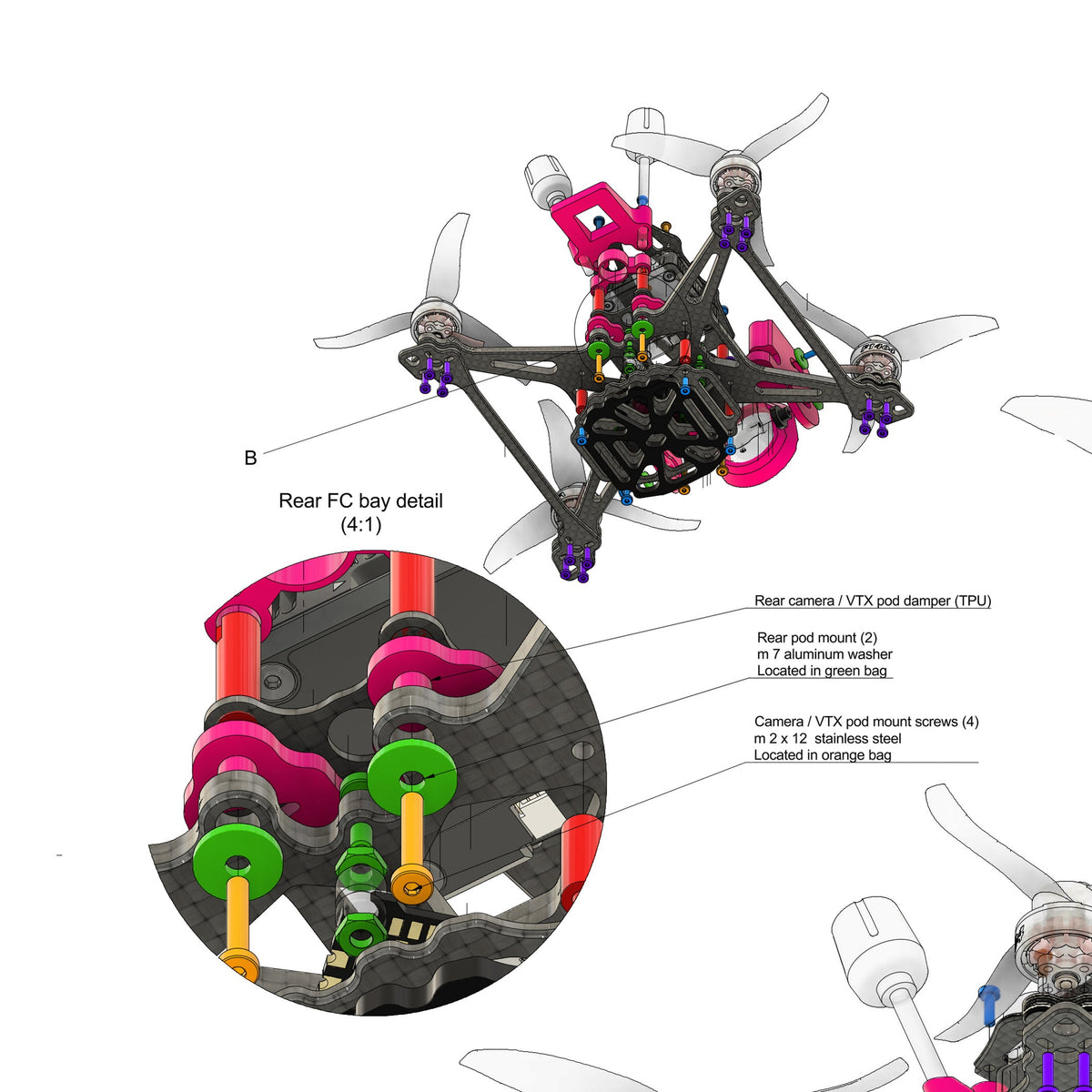

Lets build the frame together.
Items you will need:
T5 torx driver
1.3mm hex driver
1.5mm hex driver
4mm nutdriver
Flush cutters
6" of kite string or dental floss
capacitor mount
For best performance we recommend installing a 1,000uf solid state (silver) capacitor in the TPU mount highlighted in orange. Use 20ga wire and shrink tubing to solder the pins the the battery terminal pads on the FC.
Flight controller setup
Use the reference images below to configure your SORA's flight controller in BETAFLIGHT for best flight performance.
Use +, −, 1:1, or press Escape to close
Use +, −, 1:1, or press Escape to close
Use +, −, 1:1, or press Escape to close
Use +, −, 1:1, or press Escape to close
pre flight checklist
Confirm the PID setting. Very important: confirm PID filter tab settings.
confirm props Outward (reverse) direction in betaflight and use Betaflight to confirm proper motor direction.
Clean motor shafts with isopropyl alcohol to remove any manufacturing oil and ensure that props do not loosen or slip.
check startup/ramp power/cycle settings, motor timing and demag set to high. Use a minimum of 48K PMW refresh rate.
